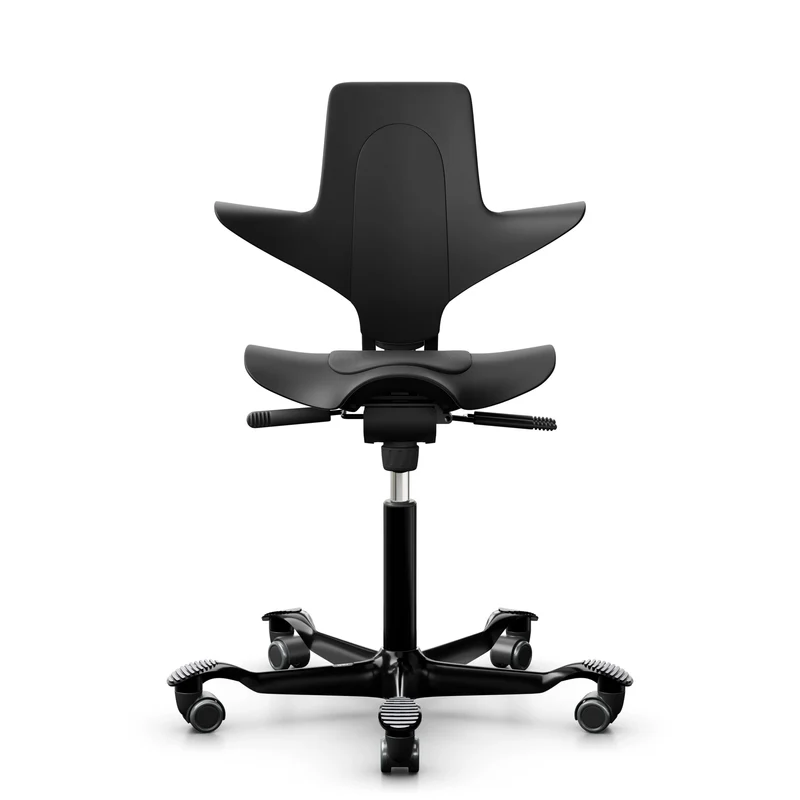

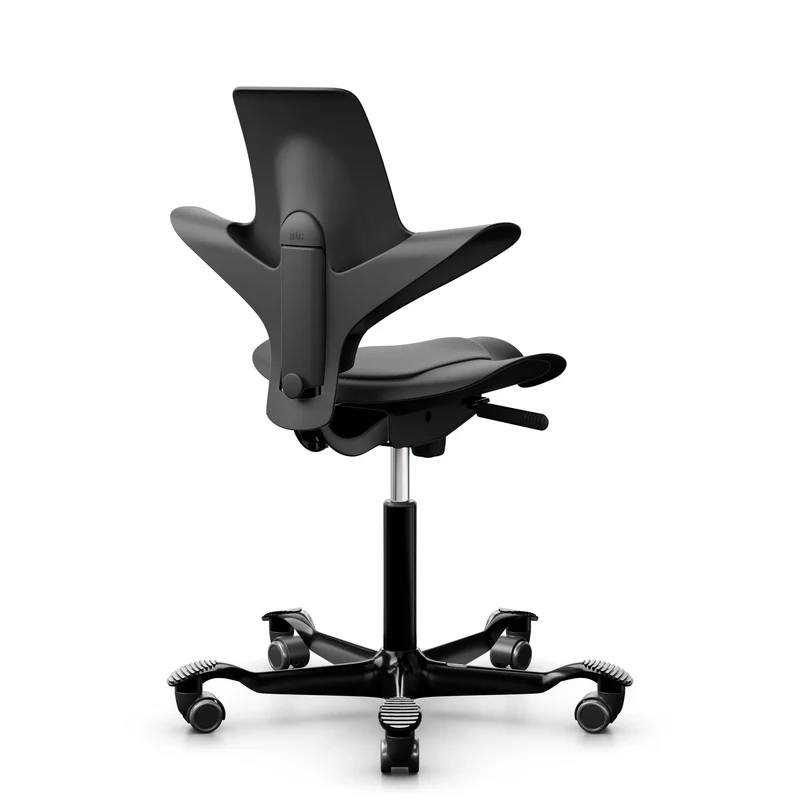

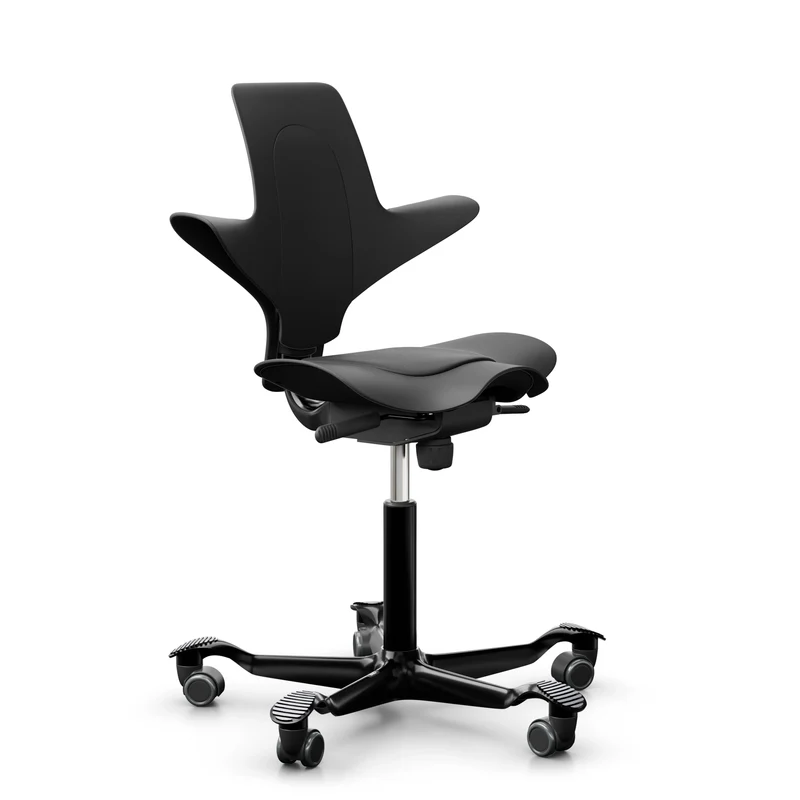

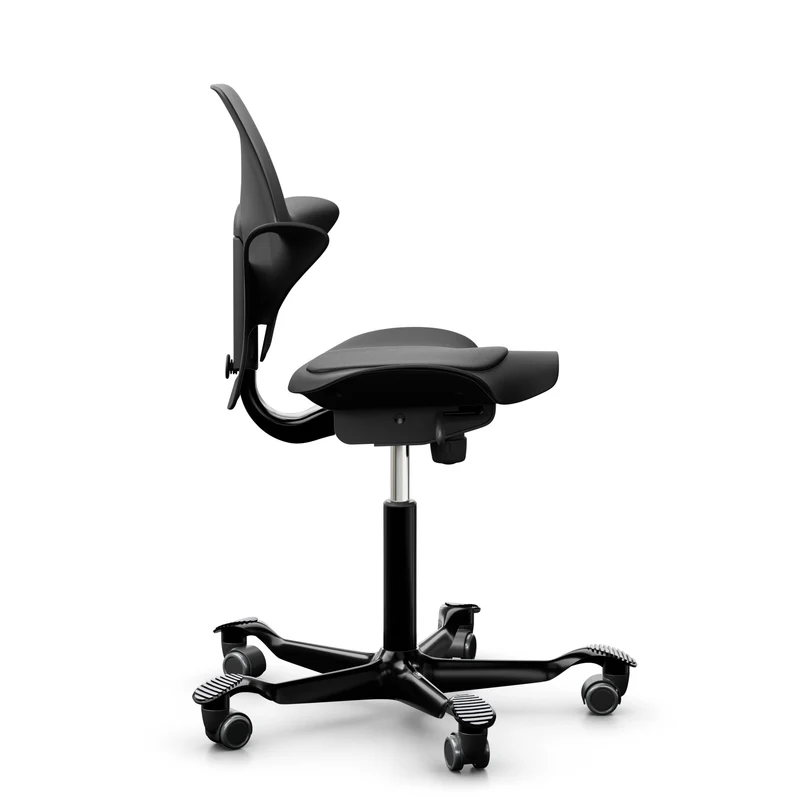

HAG Capisco Puls 8010 Clean Room

HÅG Capisco Puls 8010 Clean Room

The clean room version of the HÅG Capisco Puls 8010 combines the iconic saddle seat with an upholstery built for controlled environments. It is upholstered in anti-static synthetic leather by Nevotex and has passed an independent air cleanliness test according to ISO 14644, class 4–5. That makes it a proven choice for cleanrooms, laboratories, pharmaceutical production and electronics assembly.

Like every Capisco, the seat can be set to low, high and even semi-standing working positions, so you keep moving while staying well balanced.

CLEAN ROOM SUITABILITY

• ISO 14644 class 4–5 approved – air cleanliness test passed with the chair upholstered in anti-static Nevotex synthetic leather (price group 3).
• GMP Grade D and higher – for Grade D cleanrooms, any chair meeting ISO 8 or cleaner is sufficient. With ISO class 4–5, the Capisco Puls Clean Room comfortably exceeds that requirement.
• Anti-static upholstery – the Nevotex synthetic leather helps prevent static build-up, important around sensitive electronics and processes.
• Easy to clean and disinfect – the chair is made mainly of solid materials, with only a small upholstered area in the centre of the seat. Smooth, closed surfaces can be wiped down with 70% ethanol.
• 5-year warranty – Flokk provides a 5-year warranty on clean room chairs, on condition that castors and upholstery are cleaned regularly with a suitable cleaning agent.

INDEPENDENT TEST RESULTS

The HÅG Capisco Puls 8010 was tested by CIT Energy Management AB in a cleanroom test chamber at Chalmers University of Technology (Gothenburg, Sweden), with unidirectional HEPA-filtered airflow and a test person in full cleanroom garments. The chair was compared with a reference chair without padding or moving parts.

• Negligible particle generation – particles from the chair were negligible compared to those from the person using it.
• Cleanroom class unchanged – the working zone kept the same cleanroom class with the Capisco Puls as with the reference chair.
• Worst-case stress tests – adjusting seat angle and seat height continuously still kept the working zone within ISO class 4.
• No microbial contamination – after deliberate contamination by bare hands, no microbes could be detected on seat and backrest once rinsed with 70% ethanol.

Download the full cleanroom test report (pdf)

SPECIFICATIONS

• Upholstery: anti-static synthetic leather by Nevotex (clean room version)
• HÅG in Balance® (balanced, flowing tilt function)
• Adjustable tilt tension backwards
• Seat height adjustment
• Seat depth adjustment
• Back height adjustment
• Lockable seat
• Suitable for all working surfaces with a table height of 72 cm and higher
• Five star base in aluminium (Ø730 mm) with curved/arched footplates, black, silver or white
• 200 mm lift (seat height: 470–655 mm)
• Castors (black), 50 mm, for hard floor or soft/carpet floor

QUESTIONS ABOUT YOUR CLEANROOM?

HÅG models can also be supplied with vinyl upholstery for other areas that need to be cleaned regularly. Not sure which chair fits your cleanroom class or GMP grade? Contact our customer service at [email protected] and we will advise you.

Downloads

• Cleanroom Test Report - ISO 14644 - HÅG Capisco Puls 8010.pdf
• ESD - IEC 61340 - Test Report - HÅG Capisco.pdf
• Flokk Upholstery Care & Maintenance Guide.pdf
• HÅG Capisco Puls brochure EN (pdf)
